HARDMET LANDFORCE LTD

Forestry/tree surgery > Laski HL & HLS range - wood chippers

combination wood chipper and green waste shredders Also see our Chip range of heavy duty wood chippers

HL100/25 Wood chipper - Trailer swivel-mounted

If you're a contractor wanting a lighter, compact and easily towed wood chipper, this trailer swivel-mounted wood chipper is the machine for you. Powered by a Kohler Command four-stroke air-cooled 25HP (18.6kW) engine the HL 100/25 wood chipper is suitable for chipping branches up to 4" (100mm). The wood chipper cutting wheel has four blades and a cutting speed of 43m/s.

Click here to request more information on the HL 100/25 trailer swivel-mounted wood chipper.

HL100/25 Wood chipper - Specifications

General
Length: 3.1m; 2.3m (transport)   Height: 2.39m; 2.3m (transport)
Width: 1.57m   Weight: 610kg
Power: 3-8 m3/hr   Fuel consumptlon: 7.0 l/hr
Engine
Kohler Command CH 730S (four-stroke air-cooled)
Power: 25HP (18.6kW) at 3600rpm

Wood chipper - chipping specifications

Max capacity: 100mm (4")   Cutting speed: 43m/s
No of blades: 4   Blade diameter: 446mm
Chip length: 11mm

Wood chipper - chipper feed specifications

Feed hole (BxH): 180x140mm   Hopper (BxH): 900x700mm
Rollers: 2 (upper powered, lower unpowered)
Roller diameter: 150mm top, 127mm bottom
12m/min (manual control) up to 35m/min
Drive: hydrostatic

Click here to request more information on the HL 100/25 trailer swivel-mounted wood chipper.

Laski Chipper HL100/25 - wood chipper
Laski Chipper HL100/27 - wood chipper

HL100/27 Wood chipper - Trailer swivel-mounted

Also ideal for contractors wanting a light, compact and easily towed wood chipper, this trailer swivel-mounted wood chipper has a slightly more powerful engine than the 100/25 chipper. Powered by a Kohler Command four-stroke air-cooled 27HP (20.1kW) engine the HL 100/27 wood chipper is suitable for chipping branches up to 4" (100mm). The wood chipper cutting wheel has four blades and a cutting speed of 43m/s.

Click here to request more information on the HL 100/27 trailer swivel-mounted wood chipper.

HL100/27 Wood chipper - Specifications

General
Length: 3.1m; 2.3m (transport)   Height: 2.39m; 2.3m (transport)
Width: 1.57m   Weight: 608kg
Power: 3-8 m3/hr   Fuel consumptlon: 7.0 l/hr
Engine
Kohler Command CH 740S (four-stroke air-cooled)
Power: 27HP (20.1kW) at 3600rpm

Wood chipper - chipping specifications

Max capacity: 100mm (4")   Cutting speed: 43m/s
No of blades: 4   Blade diameter: 446mm
Chip length: 11mm

Wood chipper - chipper feed specifications

Feed hole (BxH): 180x140mm   Hopper (BxH): 900x700mm
Rollers: 2 (upper powered, lower unpowered)
Roller diameter: 160mm top, 127mm bottom
12m/min (manual control) up to 35m/min
Drive: hydrostatic

Click here to request more information on the HL 100/27 trailer swivel-mounted wood chipper.

HLS 120D Wood chipper - Trailer swivel-mounted

The HLS 120D wood chipper is an excellent choice for tree surgeons and arb contractors, its swivel mount making it especially suitable for roadside use.

If you need a more powerful, but still light and easily manoevred swivel-mounted wood chipper, the HLS 120DA is ideal for you. This powerful wood chipper easily disposes of branches, logs, shrubs, bark and other aerial parts of plants, together with redundant timber, such as poles, planks, stakes.

The HLS 120D wood chipper can process the above materials up to circular 150 mm diameter, or flat material thickness of 60 mm. This wood chipper is equipped with a state-of-the-art No-Stress anti-lock braking device and is available in either a single or twin axle version.

Click here to request more information on the HLS 120D trailer swivel-mounted wood chipper.

HLS 120D Wood chipper - Specifications

General
Length: 3.99m; 3.5m (transport)   Height: 2.72m; 2.02m (transport)
Width: 1.8m   Weight: 1130kg
Power: 5-12m3/hr   Fuel consumptlon: 4.9 l/hr Rotation: 360°; 12 positions
Engine
Lombardini 9 LD 625-2 (four-stroke air-cooled)
Power: 28.5HP (21kW) at 3000rpm
Fuel capacity: 20 l

Wood chipper - chipping specifications

Max capacity: 150mm (6")   Cutting speed: 42m/s
No of blades: 2   Blade diameter: 560mm
Chip length: 9mm

Wood chipper - chipper feed specifications

Feed hole (BxH): 290x220mm   Hopper (BxH): 920x800mm
Rollers: 2   Roller diameter: 190mm
Input speed: 12m/min (manual control) up to 40m/min
Drive: hydrostatic

Click here to request more information on the HLS 120D trailer swivel-mounted wood chipper.

Click here to see a video of the Laski HLS 120D wood chipper in action.

Laski HLS120D wood chipper - single axle Laski HLS120D wood chipper - twin axle

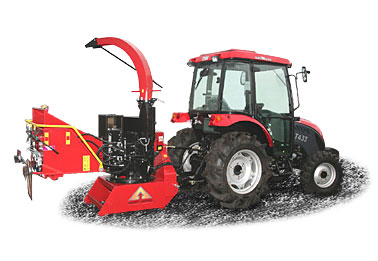

Laski HLS150D power take off wood chipper

HL 120T Wood chipper - power take-off

If you're a contractor or farmer requiring a compact power take-off (PTO) wood chipper, the HL 120T tractor-driven PTO wood chipper is an ideal choice.

The HL120T wood chipper is easily mounted and features a state-of-the-art No-Stress control as standard. This wood chipper can handle materials up to 150mm in diameter or sheet materials 60mm thick, for easy disposal of branches, trunks, brash and redundant timber, such as poles and planks.

Click here to request more information on the HL 120T power take-off wood chipper.

HL 120T Wood chipper - Specifications

General
Length: 2.54m; 2.09m (transport)   Height: 2.54m; 1.85m (transport)
Width: 1.37m; 1.42m (transport)   Weight: 778kg
Power: ca 7-12m3/hr Rotation: 180°; 7 positions
PTO
PTO Performance: 30-50 HP    PTO: 540 rpm

Wood chipper - chipping specifications

Max capacity: 160mm (6.4")   Cutting speed: 42m/s
No of blades: 2   Blade diameter: 560mm
Chip length: 9mm

Wood chipper - chipper feed specifications

Feed hole (BxH): 290x220mm   Hopper (BxH): 920x800mm
Rollers: 2   Roller diameter: 190mm
Input speed: 12m/min - 40m/min (manual control)
Drive: hydrostatic

Click here to request more information on the HL 120T power take-off wood chipper.

Click here to see a video of the Laski HL 120T power take-off (PTO) wood chipper in action.

HLS 150D Wood chipper
Tracked and trailer swivel-mounted versions

The HLS 150D wood chippers are the choice for you, if you're looking for power to handle any chipping job. These heavy-duty tracked and trailed chippers are tough workhorses for contractors, utilities, Local Authorities and hire outlets

These wood chippers effortlessly dispose of branches, logs, shrubs, bark and redundant timber, such as poles, planks and stakes. They will chip wood up to 6" (150mm) producing chips about 9mm in length. Both versions of the HLS 150D wood chipper are equipped with No-Stress anti-lock braking devices.

Click here to request more information on the HLS 150D tracked or trailer swivel-mounted wood chipper.

Trailer swivel-mounted HLS 150D wood chipper

The HLS150D wood chipper offers turntable versatility with the power and torque of a diesel Lombardini air-cooled engine, delivering 28.5HP (21kW) at 3000rpm.

Tracked HLS 150D wood chipper

The HLS 150D Self-propelled tracked/crawler wood chipper is designed for ease of access in difficult terrain and uses the same Lombardini engine.

HLS 150D wood chipper - Specifications

General - towed version
Length: 4m; 3.53m (transport)   Height: 2.72m; 2.03m (transport)
Width: 1.5m   Weight: 1100kg
Rotation: 120°; 5 positions
General - tracked version
Length: 3.33m; 2.88m (transport)   Height: 2.54m; 1.86m (transport)
Width: 1.48m   Weight: 1225kg
Shipping rate: 4km/hr   Pitch: 50%
General - both versions
Power: 7-12m3/hr   Fuel consumptlon: 4.9 l/hr
Engine - both versions
Lombardini 9 LD 625-2 (four-stroke air-cooled)
Power: 28.5HP (21kW) at 3000rpm
Fuel capacity :20 l   Max engine tilt: 25° in each direction

Wood chipper - chipping specifications - both versions

Max capacity: 150mm (6")   Cutting speed: 42m/s
No of blades: 2   Blade diameter: 560mm
Chip length: 9mm

Wood chipper - chipper feed specifications - both versions

Feed hole (BxH): 290x220mm   Hopper (BxH): 920x800mm
Rollers: 2   Roller diameter: 190mm
Input speed: 12m/min - 40m/min (manual control)
Drive: hydrostatic

Click here to request more information on the HLS 150D tracked or trailer swivel-mounted wood chipper.

Click here to see a video of the Laski HLS 150D tracked wood chipper in action.

Laski HLS150D tracked wood chipper Laski HLS150D trailer swivel-mounted wood chipper
